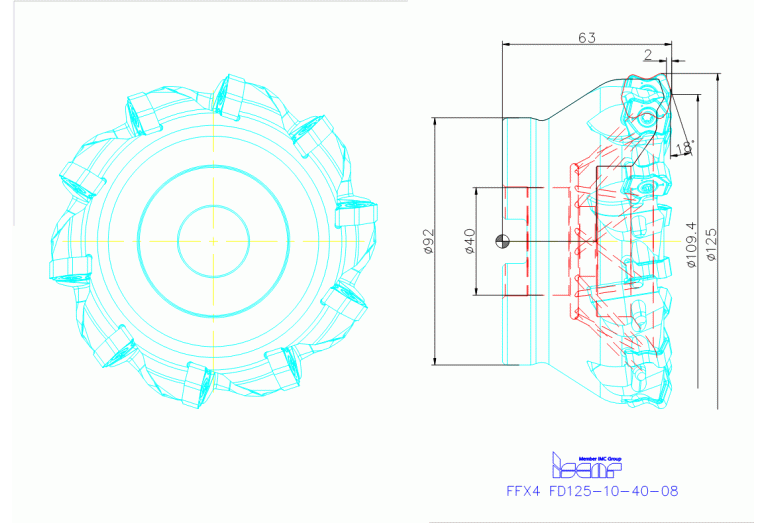

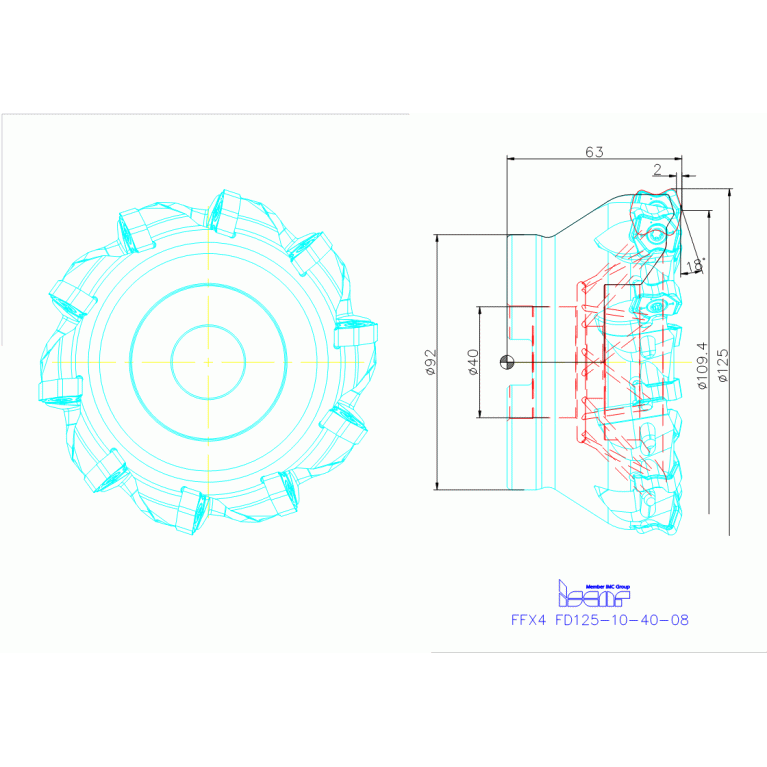

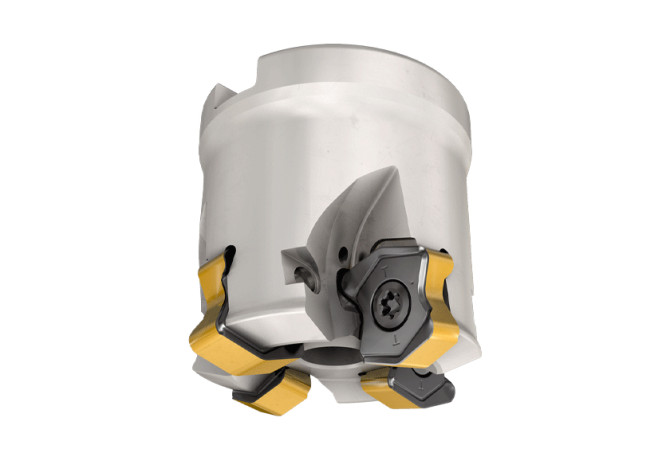

FFX4 FD125-10-40-08

Артикул: 3394309

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

109.4 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

125 mm

Delivery state valid from

4/1/2022

DHUB Hub diameter

92 mm

DIN

FDA04002210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Face Mills Carrying "Bone Shaped" Inserts with 4 Cutting Edges for Fast Feed Milling

ID Technical product number

3394309

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

18 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04002210

Name Identifying order number

FFX4 FD125-10-40-08

OAL Overall length

63 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

2.4 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
