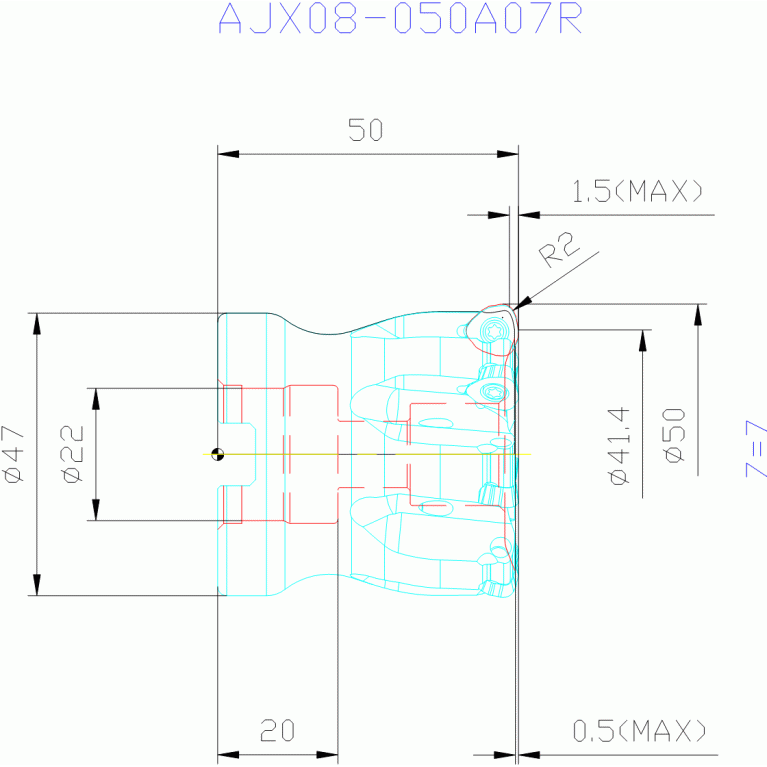

AJX08-050A07R

AJX08-050A07R

Mitsubishi Materials
Артикул: 10653975
В наличии
В корзину
Характеристики
AZ Plunge depth maximum
0.5 mm
BD Body diameter
47.807 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
7
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
41.4 mm
DCX Cutting diameter maximum
50 mm
Delivery state valid from
8/1/2023
DHUB Hub diameter
47 mm
DIN
FDA02202210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
High Feed Radius Milling Cuttter
GAMF Rake angle radial
6 Degree
GAMP Rake angle axial
-8 Degree
HAND Cutting direction
R - Right
ID Technical product number
10653975
Interface codes
J6 / J61
ISO
FDA22G2200$$$$
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 ISO
FDA22G2200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202210
Name Identifying order number
AJX08-050A07R
OAL Overall length
50 mm
RMPX Ramping angle maximum
0.7 Degree
Working process
No working processes available
WT Weight of item
0.4 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
