Главная Каталог продукции Toolunited 12 308-01 - Face milling cutter 5M5P052R80

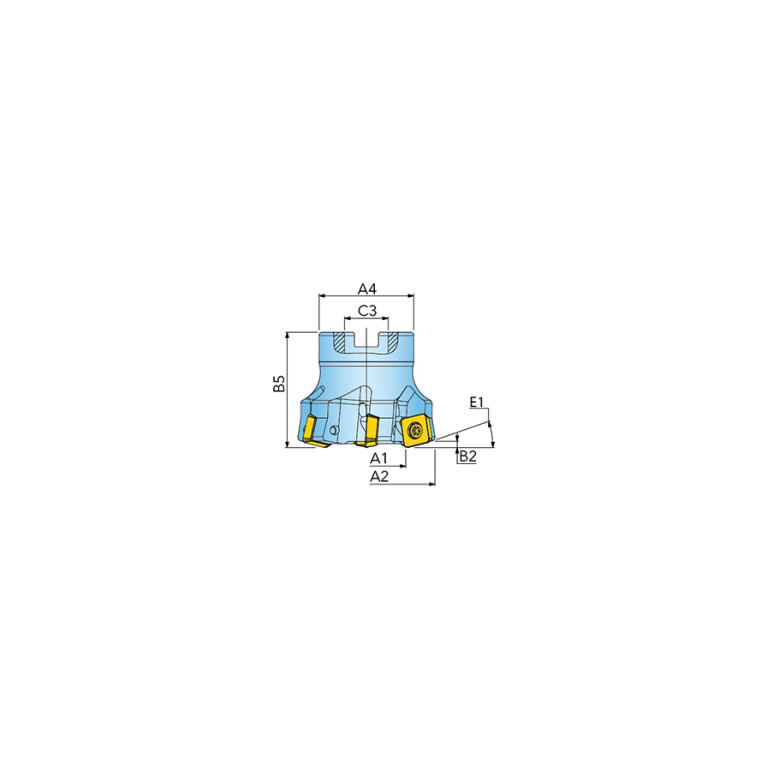

5M5P052R80

5M5P052R80 5M5P052R80 5M5P052R80

5M5P052R80

Ingersoll
Артикул: 3714667
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
15 Degree
B1A Cutting edge length Pos. A
12.95 mm
B3A Inscribed circle diameter Pos. A
12.95 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
5.08 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
1.6 mm
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
2 - With Coolant exit, radial
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
31 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
52 mm
Delivery state valid from
10/15/2023
DHUB Hub diameter
40 mm
DIN
FDA02202210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
High Feed Cutter 5M P
HAND Cutting direction
R - Right
ID Technical product number
3714667
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
8 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202210
Name Identifying order number
5M5P052R80
OAL Overall length
50 mm
RMPX Ramping angle maximum
3 Degree
Working process
FPL - Face milling
WT Weight of item
0.28 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
