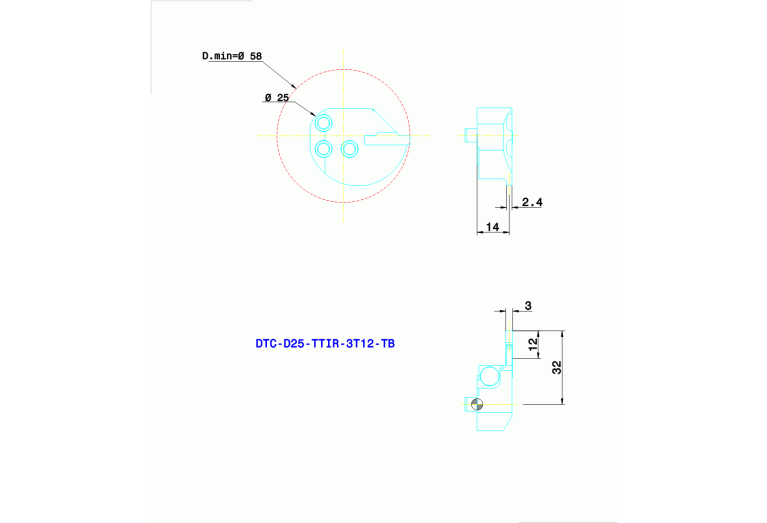

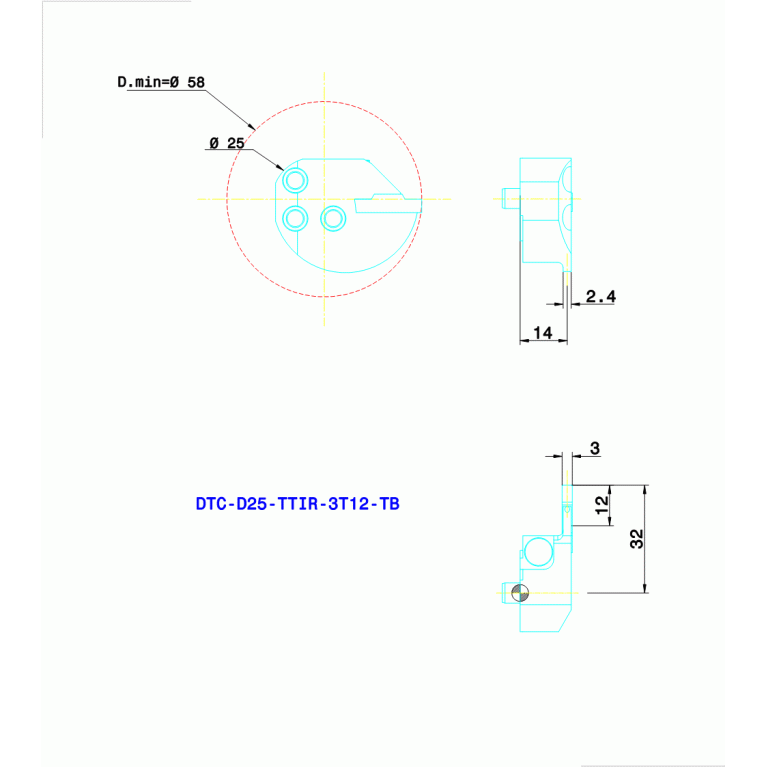

DTC-D25-TTIR-3T12-TB
DTC-D25-TTIR-3T12-TB
Артикул:
6238908
В наличии
Характеристики
CDX Cutting depth maximum
12 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CW Cutting width
2.4 mm
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
IL-K-1380
DMIN Minimum bore diameter
58 mm
FamilyProducts

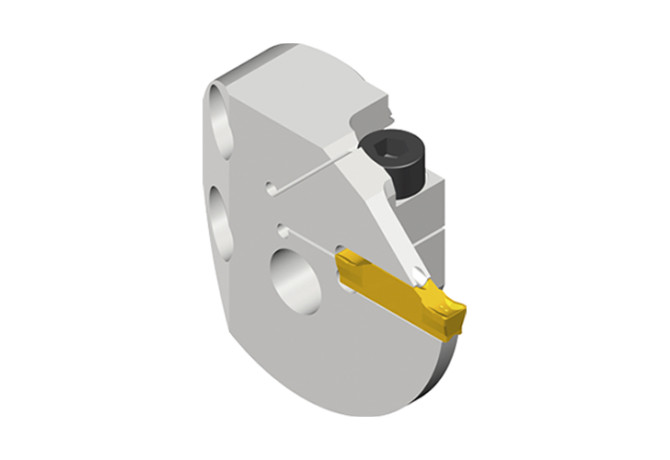

Modular head for parting and grooving on Swiss machines DTC TTIR/L-TB
HAND Cutting direction
R - Right
ID Technical product number
6238908
Interface codes
J6 /
ISYC Subclass
309-12 - System tool for ID grooving
LF Functional length
14 mm
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IL-K-1380
LTA Length tool assembly
14 mm
Name Identifying order number
DTC-D25-TTIR-3T12-TB
Working process
DEI - Grooving,DPI - Profiling internal
WT Weight of item
0.13 kg
