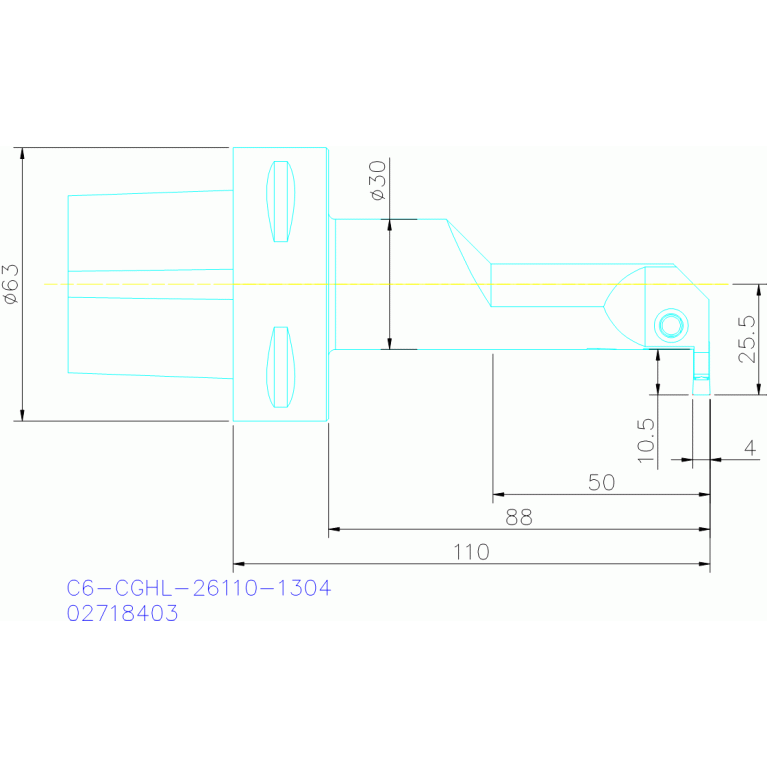

C6-CGHL-26110-1304
C6-CGHL-26110-1304
Артикул:
02718403
В наличии
Характеристики
A1A SKJ Cutting edge angle major Pos. A
1
A2A SKJ Stechbreite Nennmaß Schneidkörper Pos.A
4 mm
BDRED Body diameter reduced
30 mm
BLDA SKJ Tool style code Position A
1
CDX Cutting depth maximum
10.5 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS06300195
DIN CSW1
SO-SO LC 1304
DMIN Minimum bore diameter
32 mm
FamilyProducts
C6-CGHL-26110-1304
G1A SKJ Schneidkörperlänge Schneidkörper Pos.A
12.35 mm
G7A SKJ Schneidkantenhöhe Schneidkörper Pos.A
3.9 mm
HAND Cutting direction
L - Left
ID Technical product number
02718403
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0630$$$$
ISO CSW1
SO$$LC1304**1LB****
ISYC Subclass
309-12 - System tool for ID grooving
KAPR Tool cutting edge angle
90 Degree
LF Functional length
110 mm
LH Head length
88 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LTA Length tool assembly
110 mm
MIID Master insert identification
LC1304
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
C6-CGHL-26110-1304
WF Functional width
25.5 mm
Working process
No working processes available
WT Weight of item
1.09 kg
