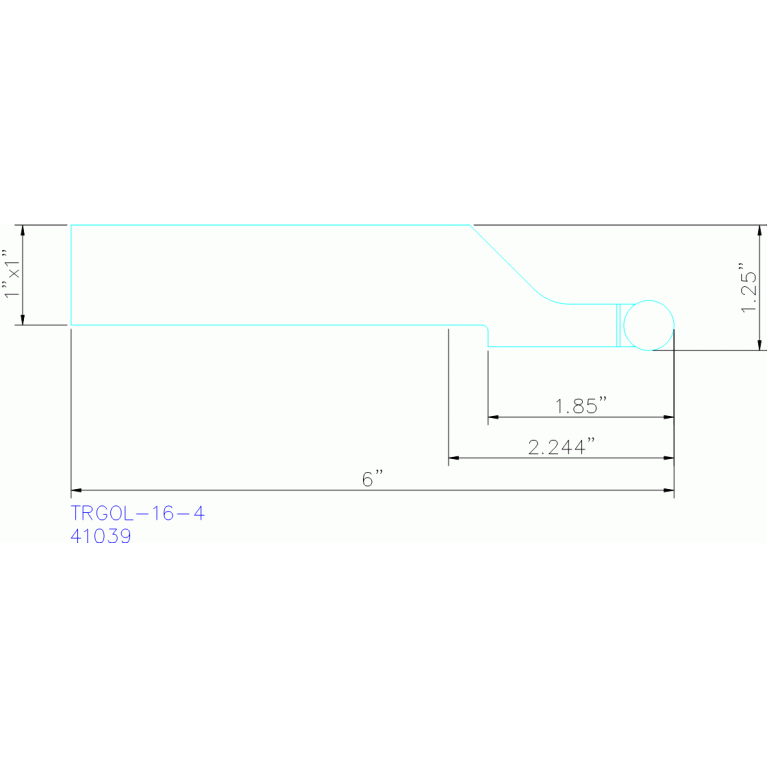

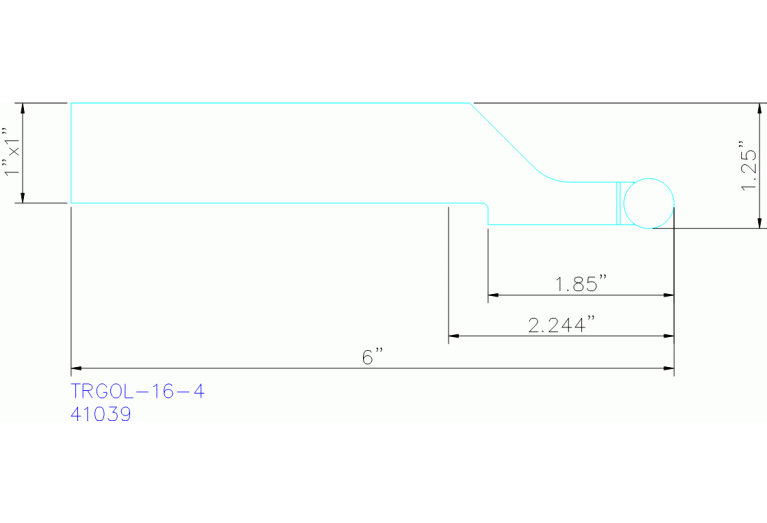

TRGOL-16-4

TRGOL-16-4

Seco
Артикул: 00041039
В наличии
В корзину
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2018
DIN
VKT16160125
DIN CSW1
SO-SO RCGS12.7
FamilyProducts
TRGOL-16-4
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
HF Functional height
25.4 mm
ID Technical product number
00041039
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree

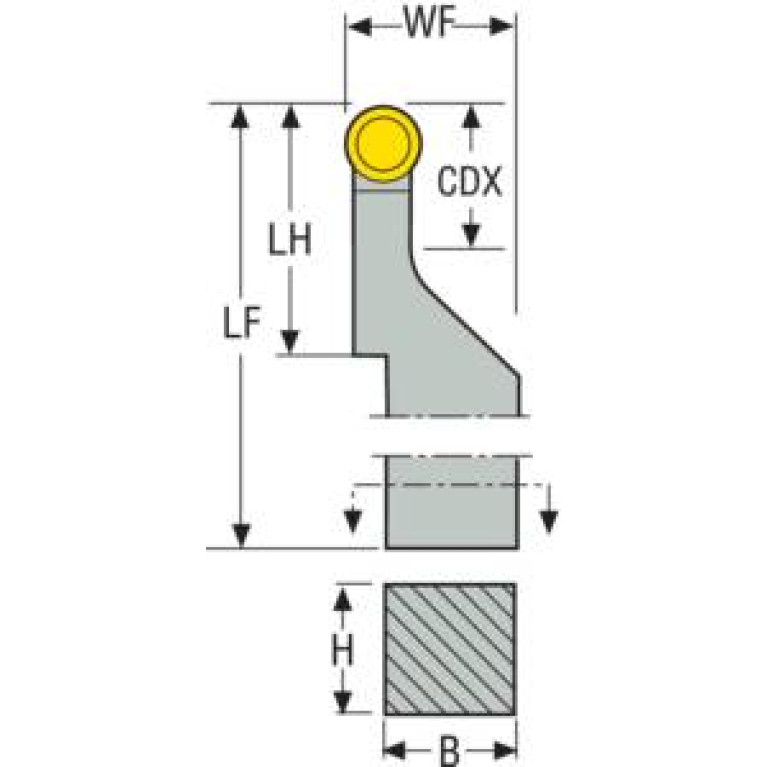

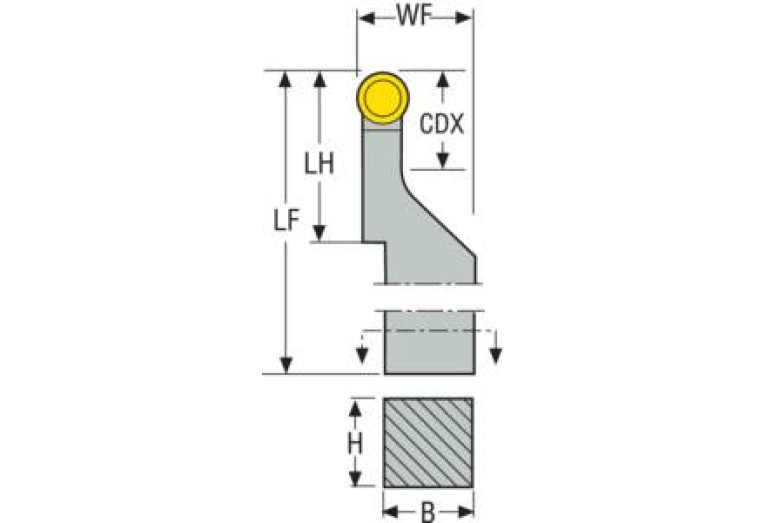

LF Functional length
152.4 mm
LH Head length
26.41 mm
LOC-03 B Shank width
25.4 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160125
MIID Master insert identification
RCGS12.7-46
MTP Clamping type code
T
Name Identifying order number
TRGOL-16-4
WF Functional width
31.75 mm
Working process
No working processes available
WT Weight of item
0.66 kg
