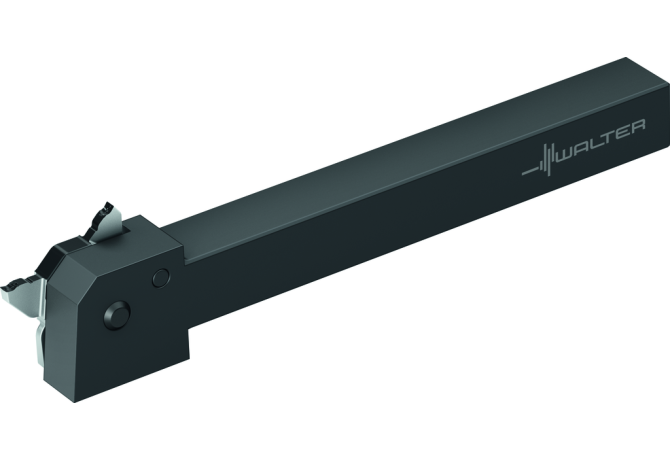

Главная Каталог продукции Toolunited 12 309-04 - Turning tool for OD grooving and parting G3011-1616L-MX22-2

G3011-1616L-MX22-2

Артикул: 8167142

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

6 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CW Cutting width

0.5 mm

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT16160105

DIN CSW1

W-MX2220003**EX**

FamilyProducts

Shank tool – Radial grooving G3011

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

16 mm

ID Technical product number

8167142

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A1616$$$$

ISO CSW1

WR$$MX2220003**EX**

ISYC Subclass

309-04 - Turning tool for OD grooving and parting

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

120 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

1616

LOC-03 H Shank height

16 mm

LOC-03 ISO

VKT01A1616$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160105

LPR Protruding length

120 mm

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

G3011-1616L-MX22-2

OAL Overall length

120 mm

THSC Tool holder shape code

G - straight shank design

Working process

DDA - External turning,DEA - Outer diameter grooving,DFA - External form turning,DGA - Thread turning, external,ESA - Cutting off

WT Weight of item

0.241 kg
