TA503344.0556
TA503344.0556
Артикул:
TA503344.0556
В наличии
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
4 - With Coolant entry, axial on hole circle
COATN Coating
TIALN-T14
COMPC Company code
E - Emuge
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle
DC Cutting diameter minimum
5.56 mm
DCONMSLD Shank diameter lower limit
-0.008 mm
DCONMSUD Shank diameter upper limit
0 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/1/2022
DIN
ZYL00601315
DRSYC Drill tool style code
1 - subland twist drill
FamilyProducts
Twist drill
FHA Flute helix angle
29.8 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
30.5 mm
GRDMFG Grade manufacturers designation
K45F
GRDPRIO Standard designation of the grade main application
HC
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
28 mm
LF Functional length
64.988 mm
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00601315
LPR Protruding length
30 mm
LS Shank length
36 mm
LU Usable length
20 mm
Name Identifying order number
TA503344.0556
NOF Flute count
2

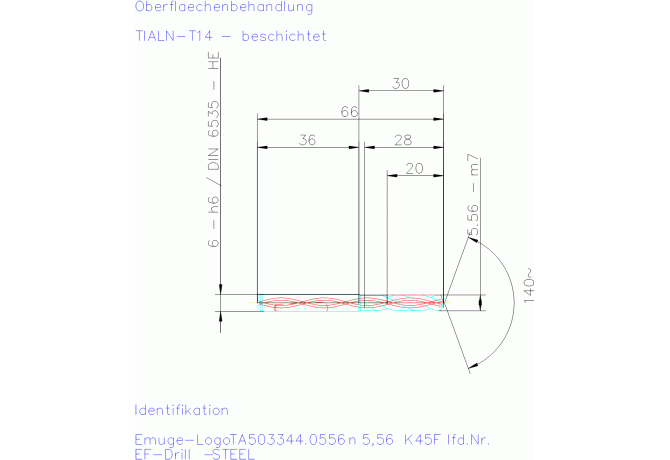

OAL Overall length
66 mm
PL Point length
1.012 mm
SIG Point angle 1st step
140 Degree
STDLET Standard letter to the standard number
A
STDNO Standard
DIN 6537
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
