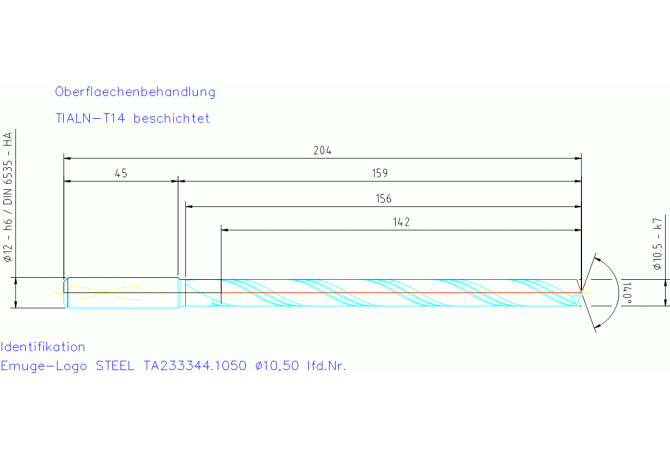

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill TA233344.1050

TA233344.1050

Артикул: TA233344.1050

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating

TIALN-T63

COMPC Company code

E - Emuge

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

10.5 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2022

DIN

ZYL01200115

DRSYC Drill tool style code

1 - subland twist drill

FamilyProducts

EMUGE-Drill

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

K45F

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

156 mm

LF Functional length

202.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

LPR Protruding length

159 mm

LS Shank length

45 mm

LU Usable length

142 mm

Name Identifying order number

TA233344.1050

NOF Flute count

OAL Overall length

204 mm

PL Point length

1.91 mm

SIG Point angle 1st step

140 Degree

STDLET Standard letter to the standard number

STDNO Standard

EMN12

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.173 kg
