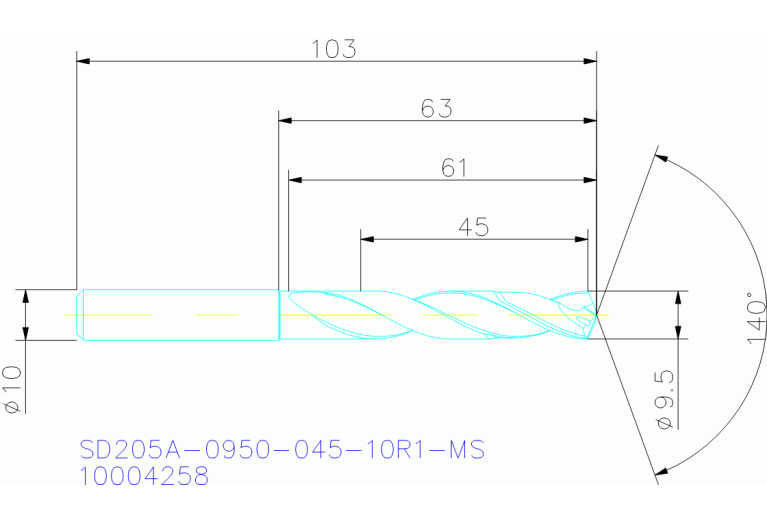

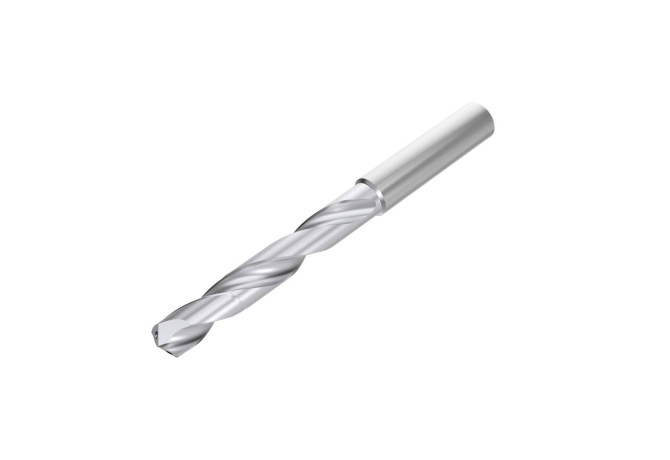

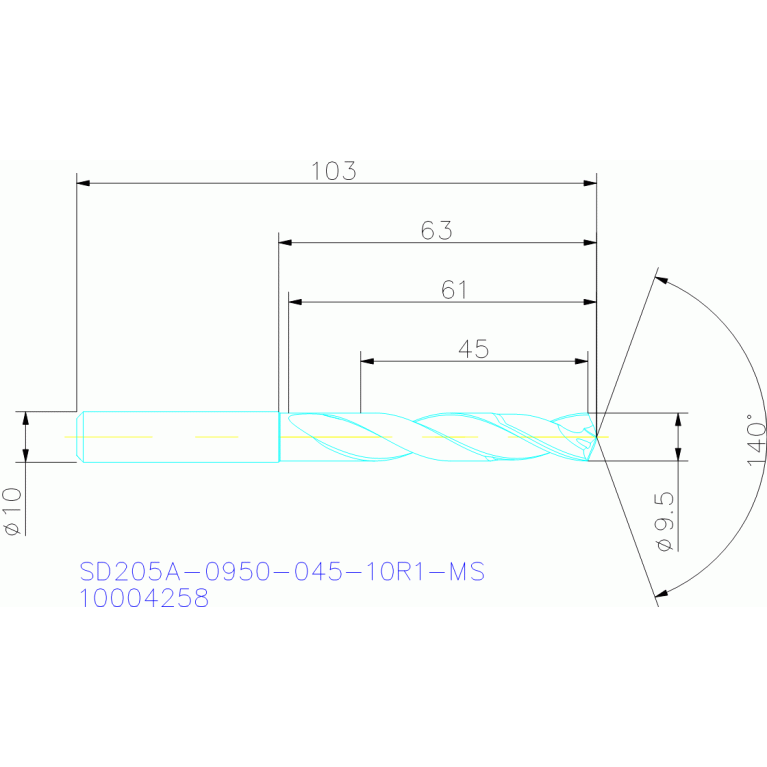

SD205A-0950-045-10R1-MS

Артикул: 10004258

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

9.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01000115

FamilyProducts

SD205A-0950-045-10R1-MS

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10004258

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

61 mm

LF Functional length

100.73 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000115

LS Shank length

40 mm

LU Usable length

45 mm

Name Identifying order number

SD205A-0950-045-10R1-MS

NOF Flute count

OAL Overall length

103 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling

WT Weight of item

0.078 kg
