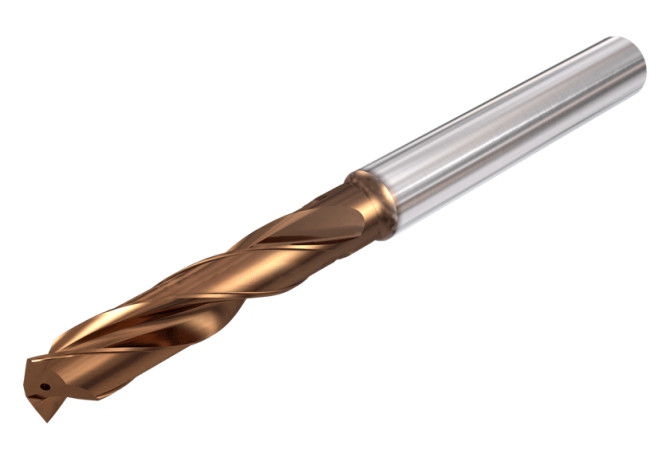

SCD 180-045-180 ACP3FL IC608

Артикул: 3411566

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

AlTiCrSiN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

18 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01800115

FamilyProducts

Solid Carbide Drills with Coolant Holes, Drilling Depth 3xD (Available Upon Request)

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC608

HAND Cutting direction

R - Right

ID Technical product number

3411566

Interface codes

J6 / J61

ISO

ZYL01G1800h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

73 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1800h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01800115

LS Shank length

50 mm

LU Usable length

45 mm

Name Identifying order number

SCD 180-045-180 ACP3FL IC608

NOF Flute count

OAL Overall length

123 mm

PL Point length

2.57 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available
