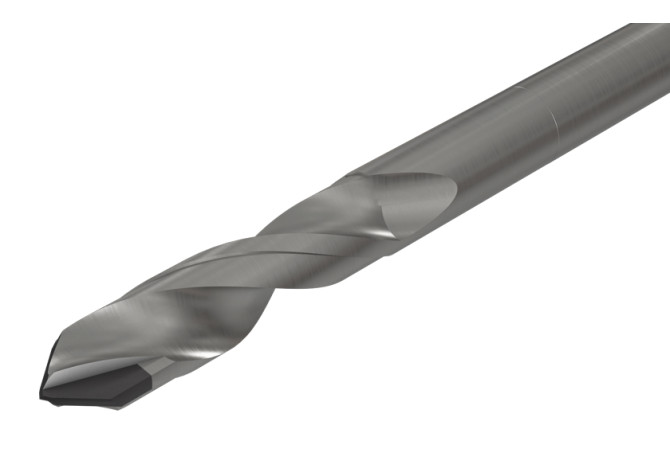

SCD 1200-045-120 WPCD

Артикул: 3384457

В наличии

В корзину

Описание

Характеристики

BMC Body material code

D - Solid steel with soldered hard-alloy inserts (BN or DP)

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01200105

FamilyProducts

Solid Carbide Drills with PCD Insert for Composite Materials (CFRP) and Stack Machining

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

3384457

Interface codes

J6 / J61

ISO

ZYL01G1200h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

55 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

49 mm

LS Shank length

40 mm

LU Usable length

45 mm

Name Identifying order number

SCD 1200-045-120 WPCD

NOF Flute count

OAL Overall length

89 mm

PL Point length

6 mm

SIG Point angle 1st step

90 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available
