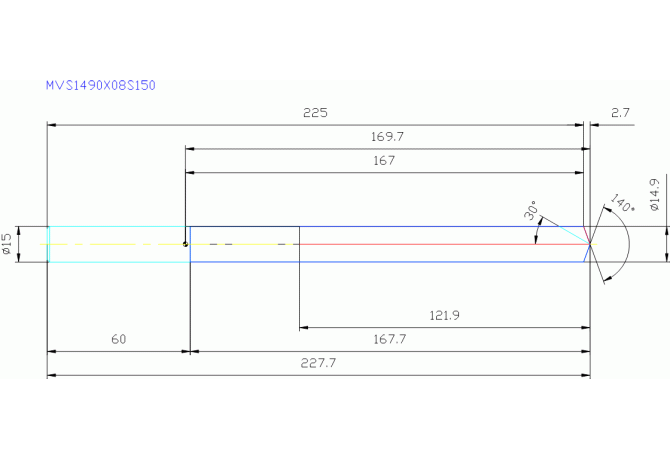

MVS1490X08S150

Артикул: 699616

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

14.9 mm

Delivery state valid from

1/1/2023

DIN

ZYL01500115

FamilyProducts

drilling

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

DP1020

HAND Cutting direction

R - Right

ID Technical product number

699616

Interface codes

J6 / J61

ISO

ZYL01G1500h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

167.7 mm

LF Functional length

225 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0150

LOC-03 DCONMS Diameter

15 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01500115

LPR Protruding length

169.7 mm

LS Shank length

60 mm

LU Usable length

121.9 mm

Name Identifying order number

MVS1490X08S150

NOF Flute count

OAL Overall length

227.7 mm

PL Point length

2.7 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available
