Главная Каталог продукции Toolunited 12 302-01 - Twist Drill MVS1220X20S130

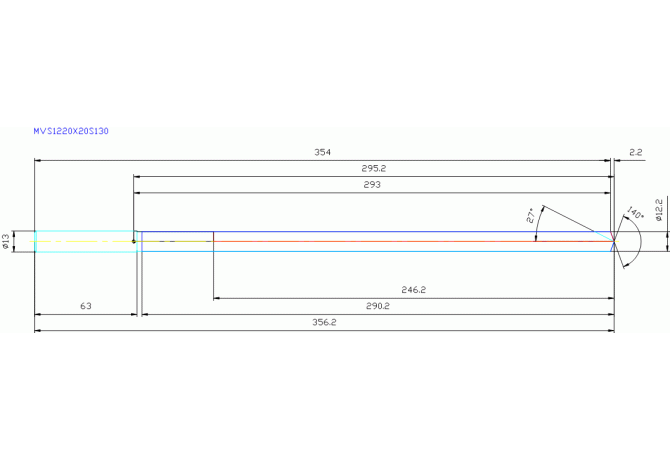

MVS1220X20S130

Артикул: 10545232

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

12.2 mm

Delivery state valid from

1/1/2023

DIN

ZYL01300115

FamilyProducts

drilling

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

DP1020

HAND Cutting direction

R - Right

ID Technical product number

10545232

Interface codes

J6 / J61

ISO

ZYL01G1300h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

290.2 mm

LF Functional length

354 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0130

LOC-03 DCONMS Diameter

13 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1300h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01300115

LPR Protruding length

295.2 mm

LS Shank length

63 mm

LU Usable length

246.2 mm

Name Identifying order number

MVS1220X20S130

NOF Flute count

OAL Overall length

356.2 mm

PL Point length

2.2 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available
