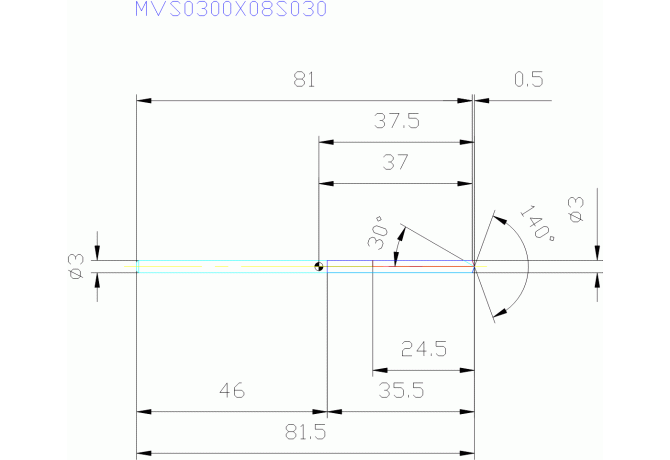

MVS0300X08S030

Артикул: 669046

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

3 mm

Delivery state valid from

1/1/2023

DIN

ZYL00300115

FamilyProducts

drilling

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

DP1020

HAND Cutting direction

R - Right

ID Technical product number

669046

Interface codes

J6 / J61

ISO

ZYL01F3000h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

35.5 mm

LF Functional length

81 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F3000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300115

LPR Protruding length

37.5 mm

LS Shank length

46 mm

LU Usable length

24.5 mm

Name Identifying order number

MVS0300X08S030

NOF Flute count

OAL Overall length

81.5 mm

PL Point length

0.5 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available
