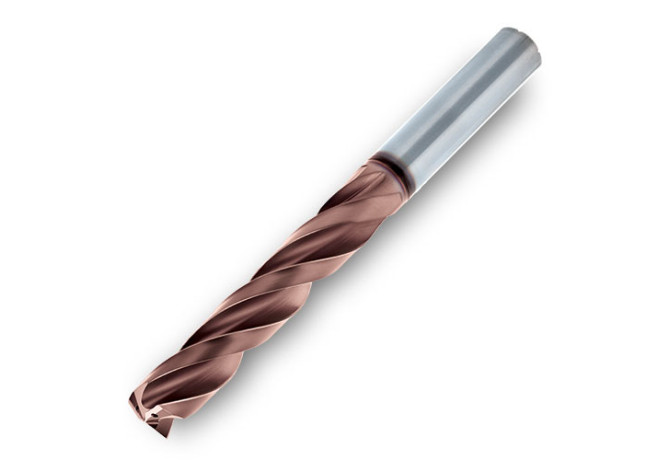

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill FR1100096T2R01 IN2205

FR1100096T2R01 IN2205

Артикул: 6245195

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

Multi TiAlN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

11 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/15/2023

DIN

ZYL01200115

FamilyProducts

Solid Carbide Drill 8D Z=3 Ø4,0-12,0

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K20-K40

GRD3RD Standard designation of the grade 3rd application

HC-S20-S40

GRDMFG Grade manufacturers designation

IN2205

GRDPRIO Standard designation of the grade main application

HC-P20-P40

HAND Cutting direction

R - Right

ID Technical product number

6245195

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

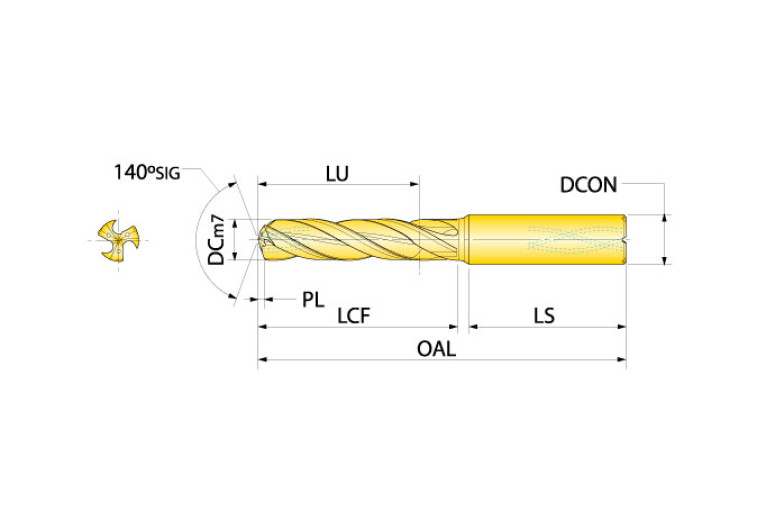

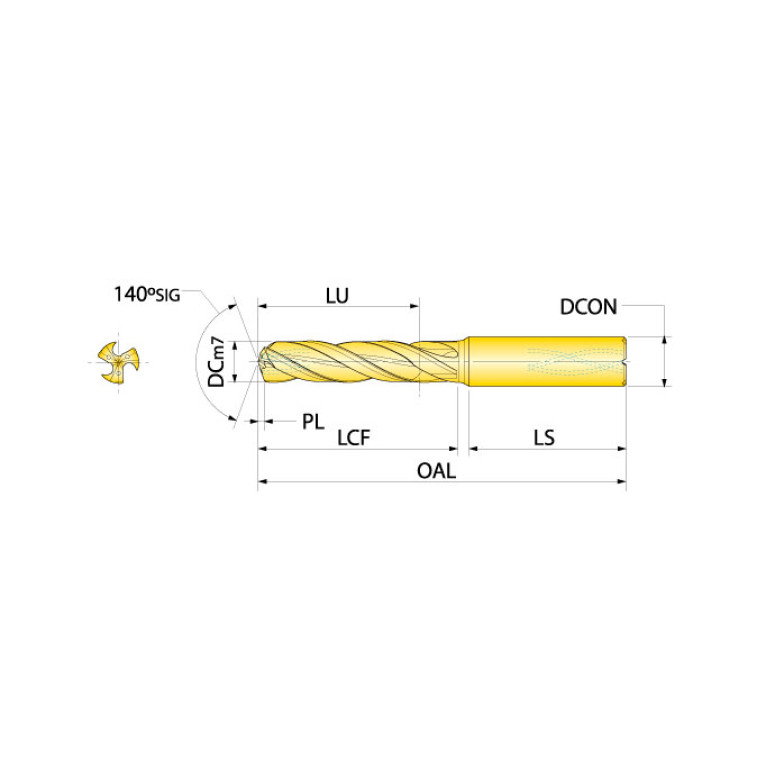

LU Usable length

40 mm

Materials

P,K,S

Name Identifying order number

FR1100096T2R01 IN2205

NOF Flute count

OAL Overall length

118 mm

PL Point length

0.43 mm

SIG Point angle 1st step

130 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.146 kg
