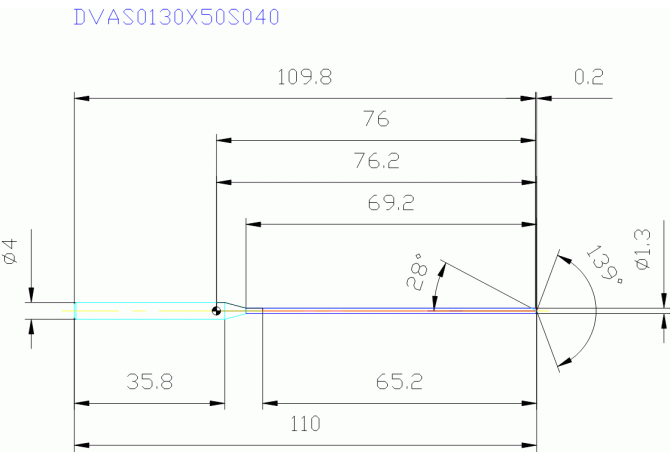

DVAS0130X50S040

Артикул: 10635605

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

1.3 mm

Delivery state valid from

1/1/2023

DIN

ZYL00400115

FamilyProducts

DVAS0130X50S040

FHA Flute helix angle

28 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

DP1120

HAND Cutting direction

R - Right

ID Technical product number

10635605

Interface codes

J6 / J61

ISO

ZYL01F4000h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

69.1 mm

LF Functional length

110 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F4000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400115

LPR Protruding length

76.2 mm

LS Shank length

35.8 mm

LU Usable length

65.2 mm

Name Identifying order number

DVAS0130X50S040

NOF Flute count

OAL Overall length

110.2 mm

PL Point length

0.2 mm

SIG Point angle 1st step

139 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available
