Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 7460F.009

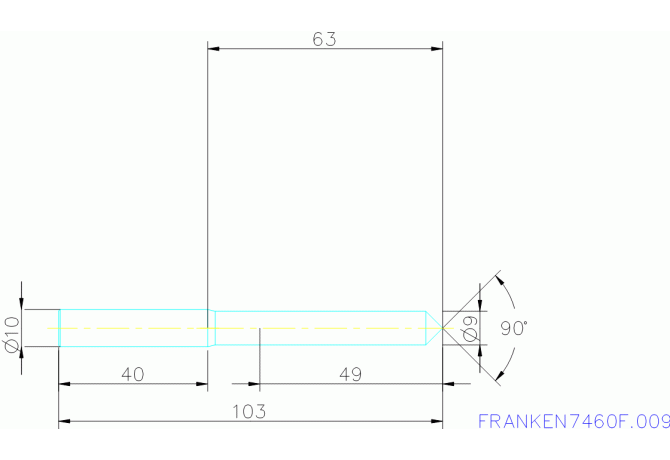

7460F.009

Артикул: 7460F.009

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

ZR / DIAMANT

COMPC Company code

E - Emuge

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

9 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2022

DIN

ZYL01000115

DRSYC Drill tool style code

1 - subland twist drill

FamilyProducts

Carbide twist drill

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

50 mm

LF Functional length

98.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000115

LPR Protruding length

63 mm

LS Shank length

40 mm

LU Usable length

49 mm

Name Identifying order number

7460F.009

NOF Flute count

OAL Overall length

103 mm

PL Point length

4.5 mm

SIG Point angle 1st step

90 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN6537

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available
