Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 7450LZ.002

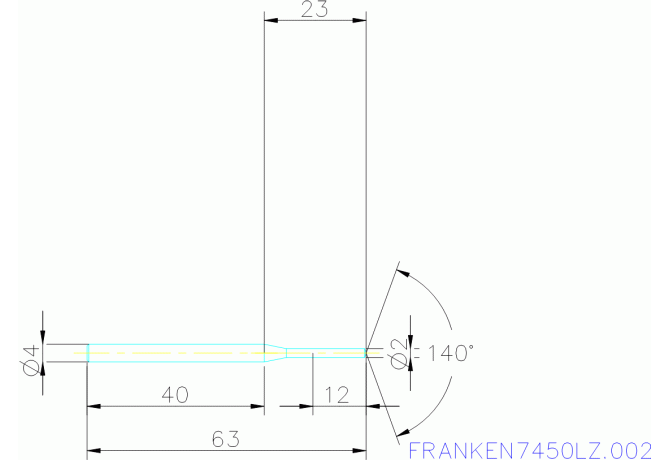

7450LZ.002

Артикул: 7450LZ.002

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

ALCR

COMPC Company code

E - Emuge

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2022

DIN

ZYL00400115

DRSYC Drill tool style code

1 - subland twist drill

FamilyProducts

Carbide twist drill

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

13 mm

LF Functional length

62.72 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400115

LPR Protruding length

35 mm

LS Shank length

28 mm

LU Usable length

12 mm

Name Identifying order number

7450LZ.002

NOF Flute count

OAL Overall length

63 mm

PL Point length

0.28 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available
