Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 745 12.500

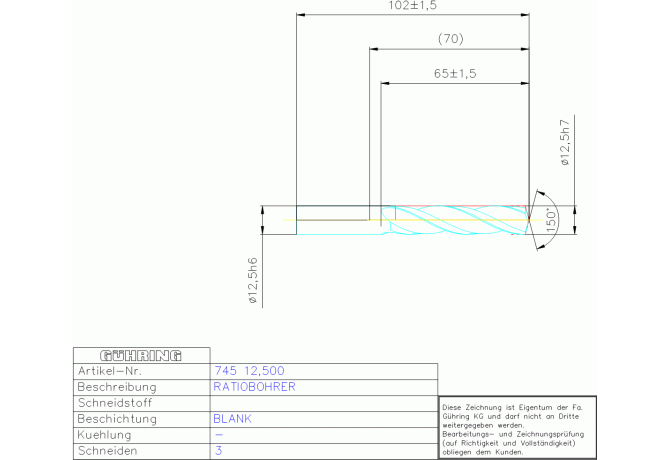

745 12.500

Артикул: 9007450125000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12.5 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01250105

FamilyProducts

VHM DREISCHNEIDER 12,500 DIN 6539RN K10

FHA Flute helix angle

28 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

73.9 mm

GRD2ND Standard designation of the grade 2nd application

DK460UF

GRDMFG Grade manufacturers designation

DK460UF

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-KG

HAND Cutting direction

R - Right

ID Technical product number

9007450125000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

65 mm

LF Functional length

102 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0125

LOC-03 DCONMS Diameter

12.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01250105

LPR Protruding length

70 mm

LS Shank length

37 mm

LU Usable length

48.4 mm

Name Identifying order number

745 12.500

NOF Flute count

OAL Overall length

102 mm

PL Point length

1.7 mm

SIG Point angle 1st step

150 Degree

STDNO Standard

DIN6539

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.117 kg
