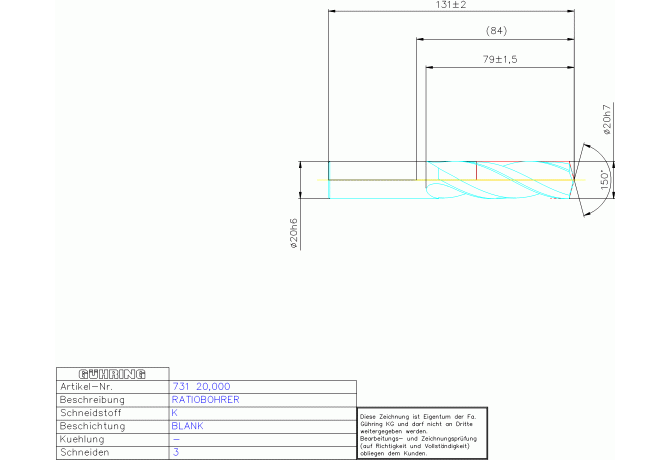

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 731 20.000

731 20.000

Артикул: 9007310200000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

20 mm

DCONMSLD Shank diameter lower limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL02000105

FamilyProducts

VHM RATIOB, GS200U 3SCH. 20,00 DIN6539RN

FHA Flute helix angle

28 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

118 mm

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-KG

HAND Cutting direction

R - Right

ID Technical product number

9007310200000

Interface codes

J6 / J61

ISO

ZYL01G2000h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

79 mm

LF Functional length

128.3 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR Protruding length

84 mm

LS Shank length

52 mm

LU Usable length

52 mm

Name Identifying order number

731 20.000

NOF Flute count

OAL Overall length

131 mm

PL Point length

2.7 mm

SIG Point angle 1st step

150 Degree

STDNO Standard

DIN6539

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.427 kg
