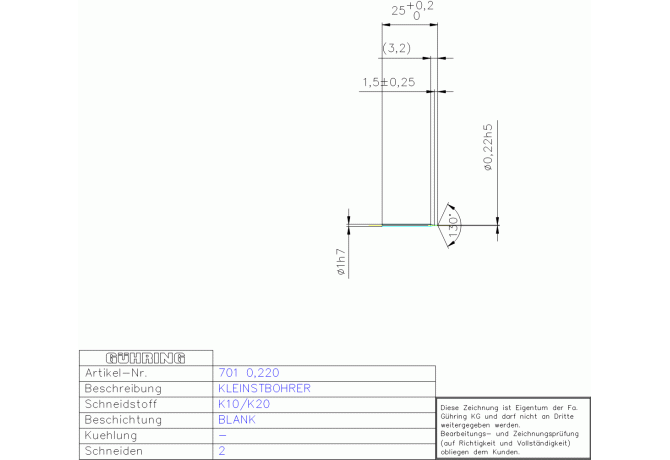

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 701 0.220

701 0.220

Артикул: 9007010002200

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

0.22 mm

DCONMSLD Shank diameter lower limit

-0.01 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00100105

FamilyProducts

VHM KLEINSTBOHRER ,220 WN RN K10 ZYL

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9007010002200

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

1.5 mm

LF Functional length

24.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0010

LOC-03 DCONMS Diameter

1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00100105

LPR Protruding length

3.2 mm

LS Shank length

21.7 mm

LU Usable length

1.2 mm

Name Identifying order number

701 0.220

NOF Flute count

OAL Overall length

25 mm

PL Point length

0.1 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

Working process

BVB - Drilling

WT Weight of item

0.002 kg
