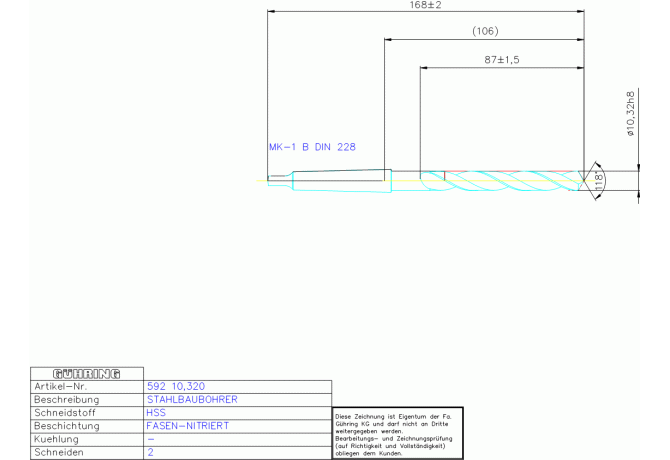

592 10.320
592 10.320
Артикул:
9005920103200
В наличии
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
FASEN-NITRIERT
COMPC Company code
GG - Gühring
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
10.32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
MKG00102085
FamilyProducts
STAHLBAUBOHRER
FHA Flute helix angle
29 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
56 mm
GRDMFG Grade manufacturers designation
HSS
GRDPRIO Standard designation of the grade main application
HSS
GRDSYC Grind style code
A
HAND Cutting direction
R - Right
ID Technical product number
9005920103200
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
87 mm
LF Functional length
106 mm
LOC-03 CCFMS Connection code form
20
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MKG Morse taper
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0010
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MKG00102085
LPR Protruding length
106 mm
LU Usable length
74 mm
Name Identifying order number
592 10.320
NOF Flute count
2
OAL Overall length
168 mm
SIG Point angle 1st step
118 Degree
STDNO Standard
DIN345
Working process
BVB - Drilling
WT Weight of item
0.083 kg
