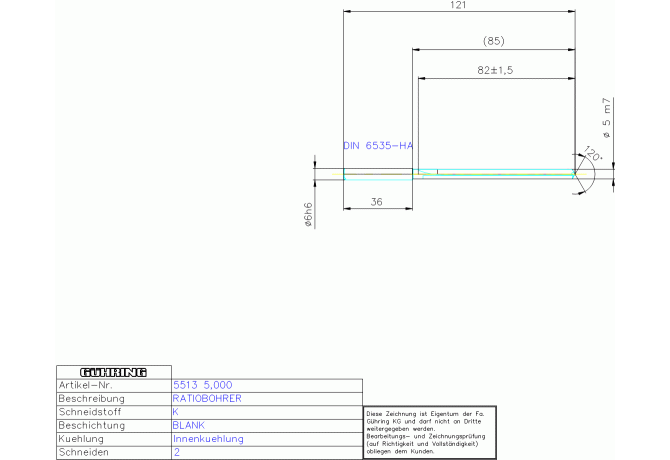

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 5513 5.000

5513 5.000

Артикул: 9055130050000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

5 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00600115

DRSYC Drill tool style code

1 - subland twist drill

FamilyProducts

VHM SL-RATIOBOH, KI RT150 GG 10XD HA

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-FG

HAND Cutting direction

R - Right

ID Technical product number

9055130050000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

82 mm

LF Functional length

119.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600115

LPR Protruding length

85 mm

LS Shank length

36 mm

LU Usable length

72 mm

Name Identifying order number

5513 5.000

NOF Flute count

OAL Overall length

121 mm

PL Point length

1.5 mm

SIG Point angle 1st step

120 Degree

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.026 kg
