Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 390 3.300

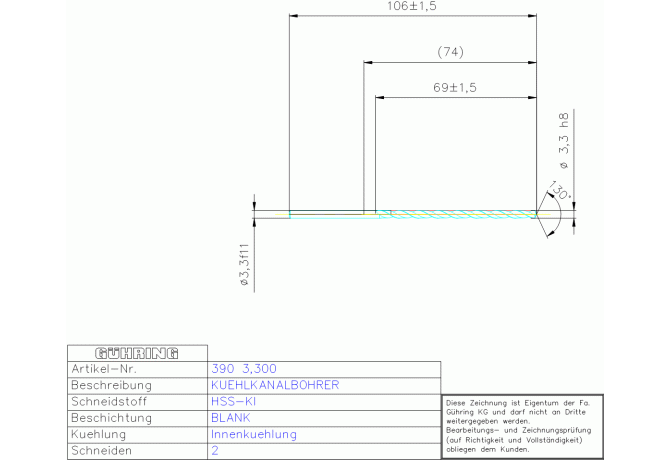

390 3.300

Артикул: 9003900033000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

3.3 mm

DCONMSLD Shank diameter lower limit

-0.085 mm

DCONMSUD Shank diameter upper limit

-0.01 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00330115

FamilyProducts

HSS KUEHLKANALBOHRER 3,300 WN RN ZYLAXIA

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS-KI

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9003900033000

Interface codes

J6 / J61

ISO

ZYL00330115f$11

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

69 mm

LF Functional length

105.2 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0033

LOC-03 DCONMS Diameter

3.3 mm

LOC-03 ISO

ZYL00330115f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00330115

LPR Protruding length

74 mm

LS Shank length

37 mm

LU Usable length

62.4 mm

Name Identifying order number

390 3.300

NOF Flute count

OAL Overall length

106 mm

PL Point length

0.8 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

Working process

BVB - Drilling

WT Weight of item

0.004 kg
