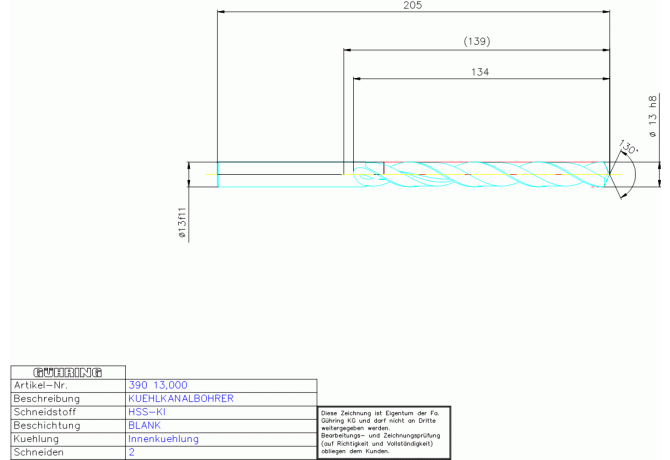

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 390 13.000

390 13.000

Артикул: 9003900130000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

13 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01300115

FamilyProducts

HSS KUEHLKANALBOHRER 13,000 WN RN ZYLAXI

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

67.3 mm

GRDMFG Grade manufacturers designation

HSS-KI

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9003900130000

Interface codes

J6 / J61

ISO

ZYL01G1300f$11

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

134 mm

LF Functional length

201.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0130

LOC-03 DCONMS Diameter

13 mm

LOC-03 ISO

ZYL01G1300f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01300115

LPR Protruding length

139 mm

LS Shank length

71 mm

LU Usable length

118 mm

Name Identifying order number

390 13.000

NOF Flute count

OAL Overall length

205 mm

PL Point length

3.1 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

Working process

BVB - Drilling

WT Weight of item

0.146 kg
