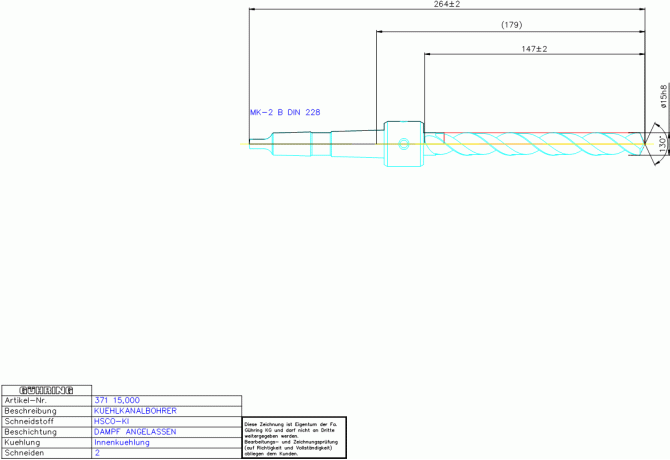

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 371 15.000

371 15.000

Артикул: 9003710150000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

5 - With coolant supply (entry) in radial direction in front of

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

15 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00202295

FamilyProducts

HSCO KUEHLKANALBOH, 15,000 WN 3RN GT100

FHA Flute helix angle

39 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

57.3 mm

GRD2ND Standard designation of the grade 2nd application

CF53

GRDMFG Grade manufacturers designation

CF53

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9003710150000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

147 mm

LF Functional length

185.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00202295

LPR Protruding length

179 mm

LS Shank length

90 mm

LU Usable length

134 mm

Name Identifying order number

371 15.000

NOF Flute count

OAL Overall length

264 mm

PL Point length

3.5 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

WN 3

Working process

BVB - Drilling

WT Weight of item

0.353 kg
