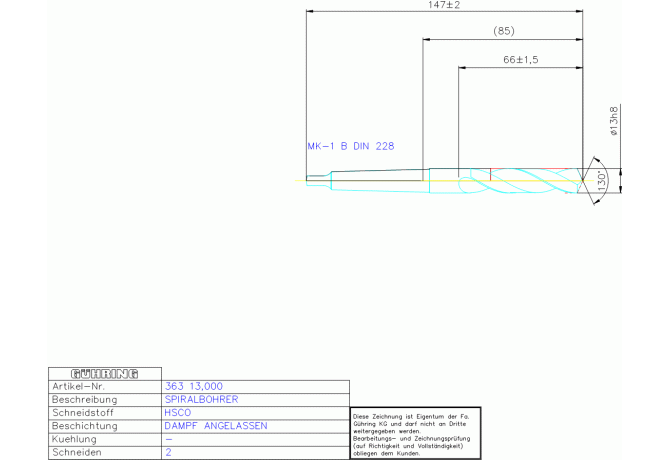

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 363 13.000

363 13.000

Артикул: 9003630130000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

13 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00102085

FamilyProducts

SPIRALBOHRER 13,000 WN 9RN GV120 MK

FHA Flute helix angle

29 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

71 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9003630130000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

66 mm

LF Functional length

81.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0010

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00102085

LPR Protruding length

85 mm

LS Shank length

65.5 mm

LU Usable length

49 mm

Name Identifying order number

363 13.000

NOF Flute count

OAL Overall length

147 mm

PL Point length

3.1 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

WN 9

Working process

BVB - Drilling

WT Weight of item

0.097 kg
