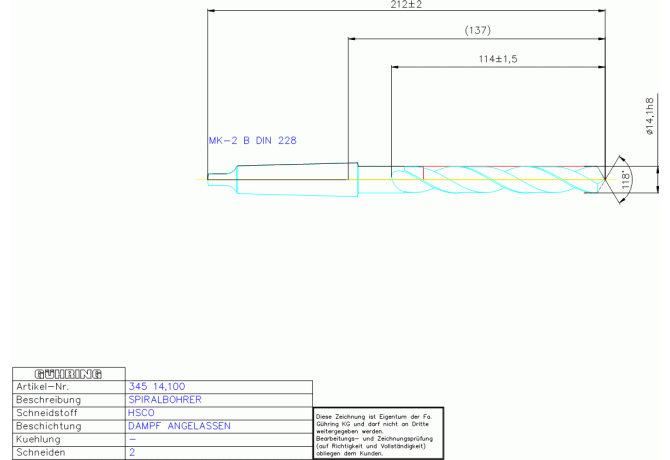

345 14.100

Артикул: 9003450141000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

14.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00202085

FamilyProducts

HSCO SPIRALBOHRER 14,100 DIN 345RN MK

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

75 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9003450141000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

114 mm

LF Functional length

132.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00202085

LPR Protruding length

137 mm

LS Shank length

80 mm

LU Usable length

97 mm

Name Identifying order number

345 14.100

NOF Flute count

OAL Overall length

212 mm

PL Point length

4.3 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN345

Working process

BVB - Drilling

WT Weight of item

0.22 kg
