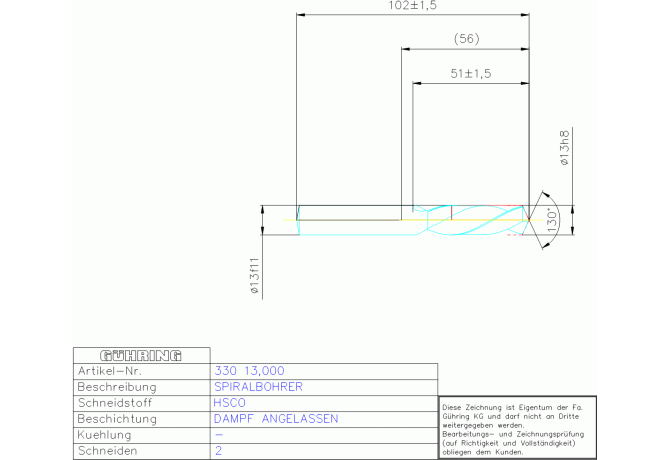

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 330 13.000

330 13.000

Артикул: 9003300130000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

13 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01300105

FamilyProducts

HSCO SPIRALBOHRER 13,000 DIN 1897LN GV12

FHA Flute helix angle

29 Degree

FHH Flute helix hand

L - Hand of helix left

FHP Flute helix pitch

71 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

L - Left

ID Technical product number

9003300130000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

51 mm

LF Functional length

98.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0130

LOC-03 DCONMS Diameter

13 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01300105

LPR Protruding length

56 mm

LS Shank length

51 mm

LU Usable length

34 mm

Name Identifying order number

330 13.000

NOF Flute count

OAL Overall length

102 mm

PL Point length

3.1 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

DIN1897

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.085 kg
