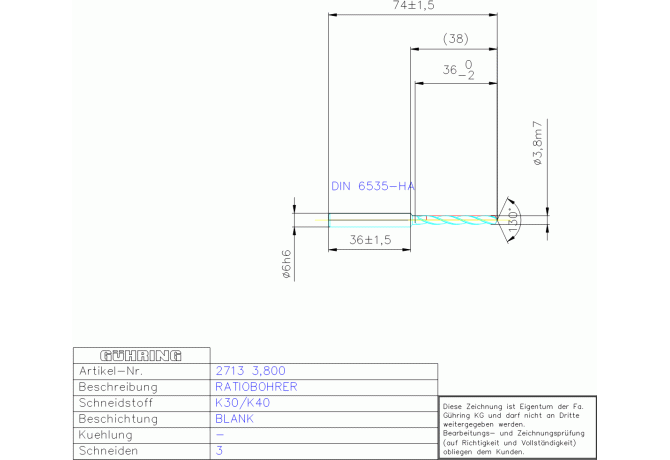

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 2713 3.800

2713 3.800

Артикул: 9027130038000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

3.8 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00600105

FamilyProducts

VHM RATIOBOH,FT200 DIN6537L R GS200G

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

25.84 mm

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-RK

HAND Cutting direction

R - Right

ID Technical product number

9027130038000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

36 mm

LF Functional length

72.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

38 mm

LS Shank length

36 mm

LU Usable length

31 mm

Name Identifying order number

2713 3.800

NOF Flute count

OAL Overall length

74 mm

PL Point length

1.14 mm

SIG Point angle 1st step

130 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN6537L

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.028 kg
