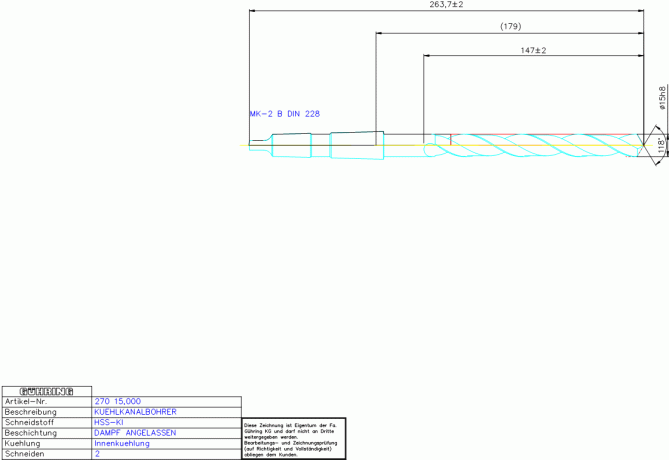

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 270 15.000

270 15.000

Артикул: 9002700150000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

15 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00202195

FamilyProducts

HSS KUEHLKANALBOHRER 15,000 WN 3RN MKAXI

FHA Flute helix angle

31 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

76.3 mm

GRDMFG Grade manufacturers designation

HSS-KI

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002700150000

Interface codes

J6 / J61

ISO

MKG21C0020$$$$

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

147 mm

LF Functional length

184.4 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0020

LOC-03 ISO

MKG21C0020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00202195

LPR Protruding length

179 mm

LS Shank length

90 mm

LU Usable length

129 mm

Name Identifying order number

270 15.000

NOF Flute count

OAL Overall length

264 mm

PL Point length

4.6 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

WN 3

Working process

BVB - Drilling

WT Weight of item

0.264 kg
