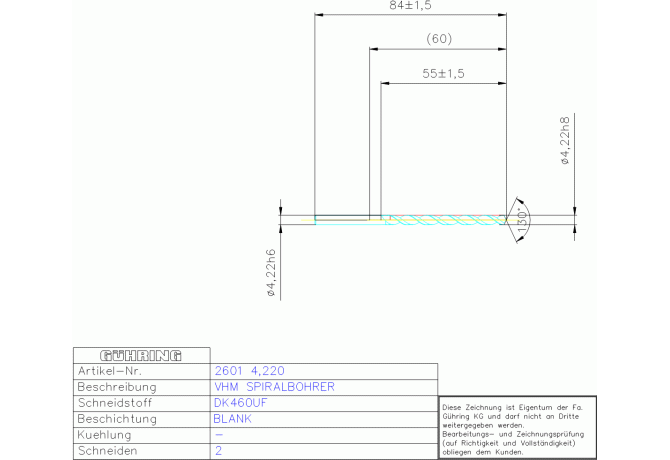

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 2601 4.220

2601 4.220

Артикул: 9026010042200

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

4.22 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00420105

FamilyProducts

VHM BOHRER 4,220 ANSI B94,11 R GT100

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

17 mm

GRD2ND Standard designation of the grade 2nd application

DK460UF

GRDMFG Grade manufacturers designation

DK460UF

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9026010042200

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

55 mm

LF Functional length

83 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0042

LOC-03 DCONMS Diameter

4.22 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00420105

LPR Protruding length

60 mm

LS Shank length

29 mm

LU Usable length

51 mm

Name Identifying order number

2601 4.220

NOF Flute count

OAL Overall length

84 mm

PL Point length

1 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

A B 94,11

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.012 kg
