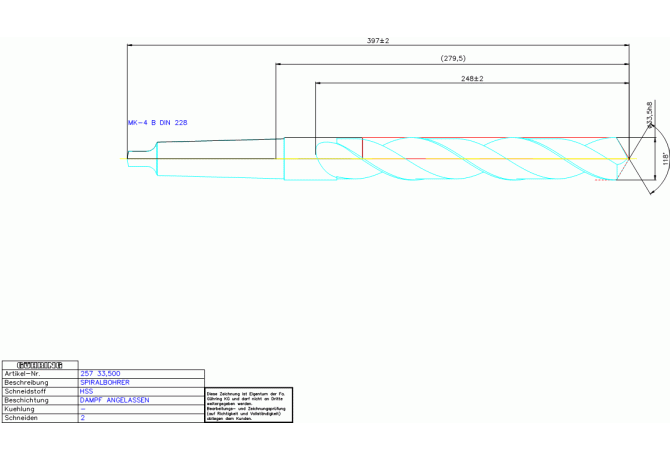

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 257 33.500

257 33.500

Артикул: 9002570335000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

33.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00402085

FamilyProducts

HSS BOHRBUCHSENBOH, 33,500 DIN 341RN MK

FHA Flute helix angle

33 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

160 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002570335000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

248 mm

LF Functional length

269.4 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0040

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00402085

LPR Protruding length

279.5 mm

LS Shank length

124 mm

LU Usable length

211 mm

Name Identifying order number

257 33.500

NOF Flute count

OAL Overall length

397 mm

PL Point length

10.1 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN341

Working process

BVB - Drilling

WT Weight of item

1.7 kg
