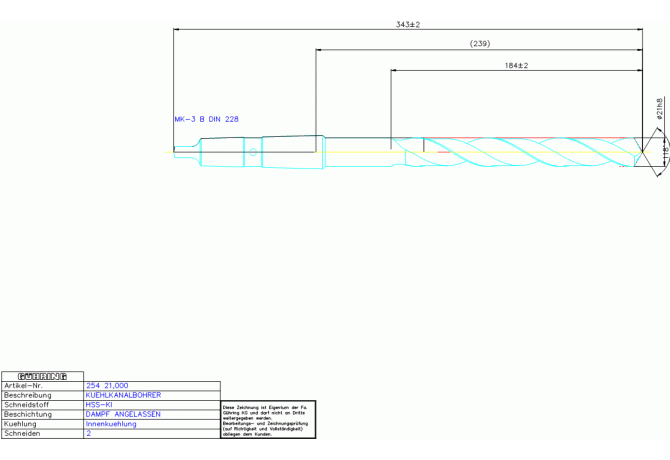

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 254 21.000

254 21.000

Артикул: 9002540210000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

21 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00302095

FamilyProducts

HSS KUEHLKANALBOHRER 21,0 WN RN MK AX RZ

FHA Flute helix angle

32 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

105.6 mm

GRDMFG Grade manufacturers designation

HSS-KI

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002540210000

Interface codes

J6 / J61

ISO

MKG20C0030$$$$

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

184 mm

LF Functional length

242.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0030

LOC-03 ISO

MKG20C0030$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00302095

LPR Protruding length

239 mm

LS Shank length

109 mm

LU Usable length

160 mm

Name Identifying order number

254 21.000

NOF Flute count

OAL Overall length

343 mm

PL Point length

6.4 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

THSZMS Connection thread nominal size machine side

M 6

Working process

BVB - Drilling

WT Weight of item

0.641 kg
