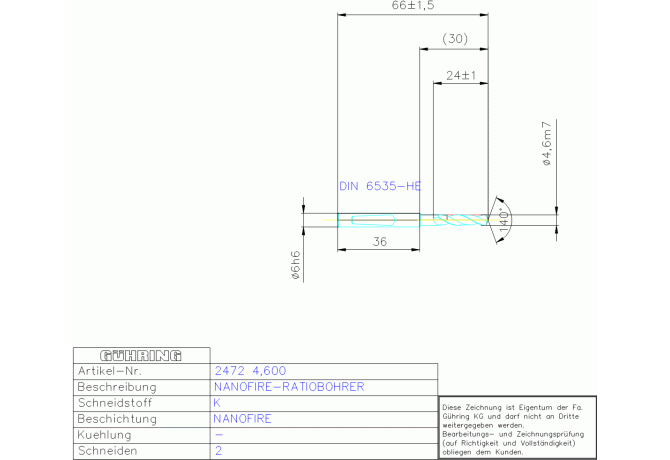

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 2472 4.600

2472 4.600

Артикул: 9024720046000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

NANOFIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

4.6 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00605305

FamilyProducts

VHM FIRE-RATIOB, RT100U 4,600 DIN 6537K

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

25 mm

GRD2ND Standard designation of the grade 2nd application

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9024720046000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

24 mm

LF Functional length

65.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00605305

LPR Protruding length

30 mm

LS Shank length

36 mm

LU Usable length

18 mm

Name Identifying order number

2472 4.600

NOF Flute count

OAL Overall length

66 mm

PL Point length

0.9 mm

SIG Point angle 1st step

140 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN6537K

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.019 kg
