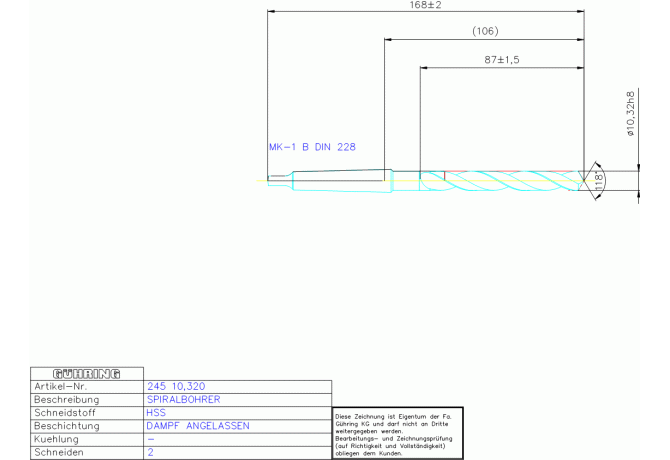

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 245 10.320

245 10.320

Артикул: 9002450103200

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

10.32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00102085

FamilyProducts

HSS SPIRALBOHRER 10,320 DIN 345RN MK

FHA Flute helix angle

29 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

56 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

R - Right

ID Technical product number

9002450103200

Interface codes

J6 / J61

ISO

MKG20C0010$$$$

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

87 mm

LF Functional length

102.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0010

LOC-03 ISO

MKG20C0010$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00102085

LPR Protruding length

106 mm

LS Shank length

65.5 mm

LU Usable length

74 mm

Name Identifying order number

245 10.320

NOF Flute count

OAL Overall length

168 mm

PL Point length

3.2 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN345

Working process

BVB - Drilling

WT Weight of item

0.089 kg
