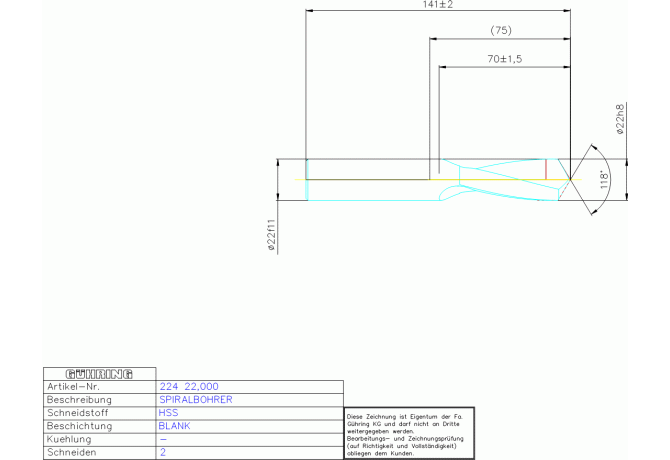

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 224 22.000

224 22.000

Артикул: 9002240220000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

22 mm

DCONMSLD Shank diameter lower limit

-0.15 mm

DCONMSUD Shank diameter upper limit

-0.02 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL02200105

FamilyProducts

HSS SPIRALBOHRER 22,000 DIN 1897RH ZYLEX

FHA Flute helix angle

16 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

250 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002240220000

Interface codes

J6 / J61

ISO

ZYL02200105f$11

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

70 mm

LF Functional length

134.3 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03 ISO

ZYL02200105f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02200105

LPR Protruding length

75 mm

LS Shank length

71 mm

LU Usable length

13 mm

Name Identifying order number

224 22.000

NOF Flute count

OAL Overall length

141 mm

PL Point length

6.7 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN1897

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.315 kg
