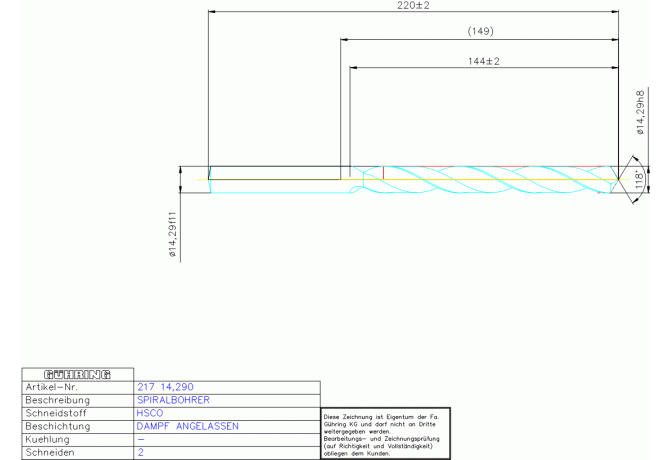

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 217 14.290

217 14.290

Артикул: 9002170142900

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

14.29 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL05620125

FamilyProducts

HSS SPIRALBOH, LANG 14,290 DIN 340RN ZYL

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

80 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002170142900

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

144 mm

LF Functional length

215.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0562

LOC-03 DCONMS Diameter

14.29 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05620125

LPR Protruding length

149 mm

LS Shank length

76 mm

LU Usable length

126 mm

Name Identifying order number

217 14.290

NOF Flute count

OAL Overall length

220 mm

PL Point length

4.3 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN340

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.223 kg
