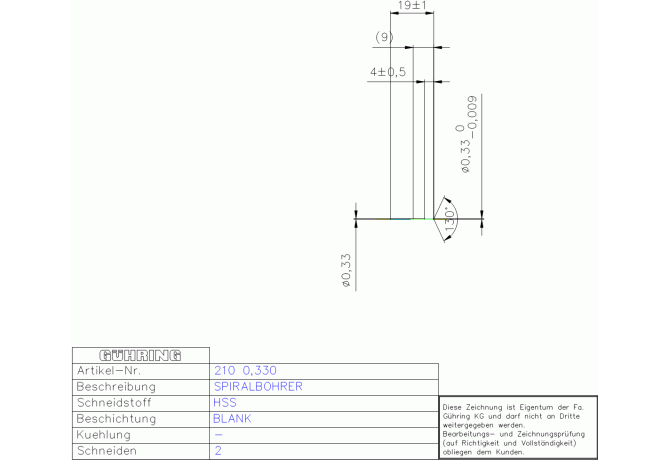

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 210 0.330

210 0.330

Артикул: 9002100003300

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

0.33 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00030105

FamilyProducts

HSS SPIRALBOH, KURZ ,330 DIN 338LW ZYL

FHA Flute helix angle

30 Degree

FHP Flute helix pitch

1.8 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

L - Left

ID Technical product number

9002100003300

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

4 mm

LF Functional length

18.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0003

LOC-03 DCONMS Diameter

0.33 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00030105

LPR Protruding length

9 mm

LS Shank length

15 mm

LU Usable length

3.6 mm

Name Identifying order number

210 0.330

NOF Flute count

OAL Overall length

19 mm

PL Point length

0.1 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

DIN338

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.001 kg
