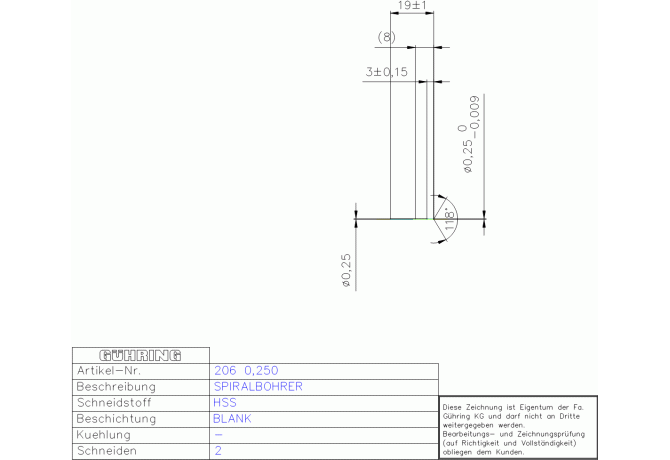

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 206 0.250

206 0.250

Артикул: 9002060002500

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Chip removal class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

0.25 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00020105

FamilyProducts

HSS SPIRALBOH, KURZ ,250 DIN 338RH ZYL

FHA Flute helix angle

15 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

3.15 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

R - Right

ID Technical product number

9002060002500

Interface codes

J6 / J61

ISO

ZYL00020105$$$$

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

3 mm

LF Functional length

18.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0002

LOC-03 DCONMS Diameter

0.25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03 ISO

ZYL00020105$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00020105

LPR Protruding length

8 mm

LS Shank length

16 mm

LU Usable length

2 mm

Name Identifying order number

206 0.250

NOF Flute count

OAL Overall length

19 mm

PL Point length

0.1 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN338

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.001 kg
