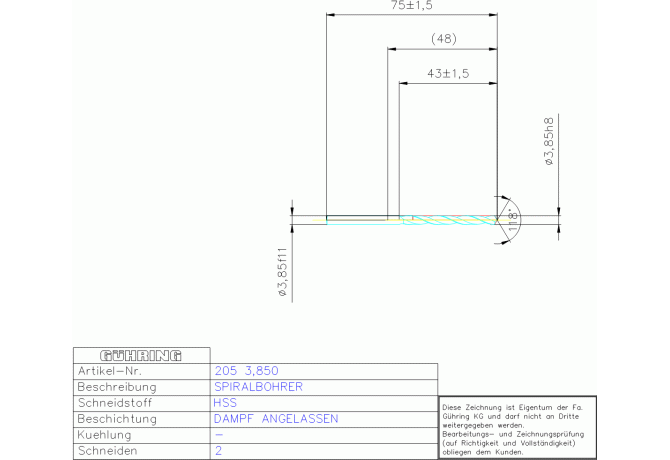

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 205 3.850

205 3.850

Артикул: 9002050038500

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

3.85 mm

DCONMSLD Shank diameter lower limit

-0.085 mm

DCONMSUD Shank diameter upper limit

-0.01 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00380105

FamilyProducts

HSS SPIRALBOH, KURZ 3,850 DIN 338RN ZYL

FHA Flute helix angle

26 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

25 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002050038500

Interface codes

J6 / J61

ISO

ZYL00380105f$11

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

43 mm

LF Functional length

73.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0038

LOC-03 DCONMS Diameter

3.85 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03 ISO

ZYL00380105f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00380105

LPR Protruding length

48 mm

LS Shank length

32 mm

LU Usable length

37 mm

Name Identifying order number

205 3.850

NOF Flute count

OAL Overall length

75 mm

PL Point length

1.2 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN338

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.006 kg
