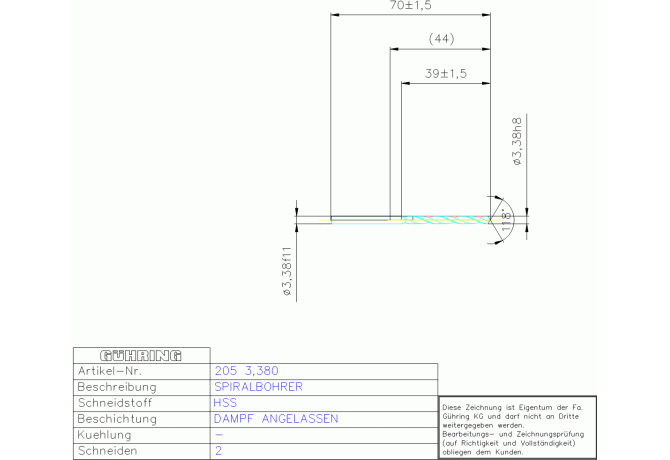

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 205 3.380

205 3.380

Артикул: 9002050033800

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

3.38 mm

DCONMSLD Shank diameter lower limit

-0.085 mm

DCONMSUD Shank diameter upper limit

-0.01 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00330105

FamilyProducts

HSS SPIRALBOH, KURZ 3,380 DIN 338RN ZYL

FHA Flute helix angle

26 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

22.4 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002050033800

Interface codes

J6 / J61

ISO

ZYL00330105f$11

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

39 mm

LF Functional length

68.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0033

LOC-03 DCONMS Diameter

3.38 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03 ISO

ZYL00330105f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00330105

LPR Protruding length

44 mm

LS Shank length

31 mm

LU Usable length

34 mm

Name Identifying order number

205 3.380

NOF Flute count

OAL Overall length

70 mm

PL Point length

1.1 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN338

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.004 kg
