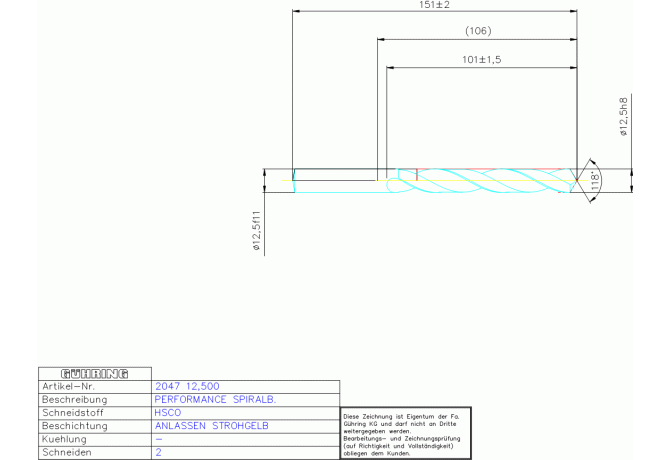

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 2047 12.500

2047 12.500

Артикул: 9020470125000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

ANLASSEN STROHGELB

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12.5 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01250105

FamilyProducts

HSCO SPIRALB, KURZ 12,500 DIN 338RN P200

FHA Flute helix angle

29 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

71 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9020470125000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

101 mm

LF Functional length

147.2 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0125

LOC-03 DCONMS Diameter

12.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01250105

LPR Protruding length

106 mm

LS Shank length

50 mm

LU Usable length

85 mm

Name Identifying order number

2047 12.500

NOF Flute count

OAL Overall length

151 mm

PL Point length

3.8 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN338

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.1 kg
