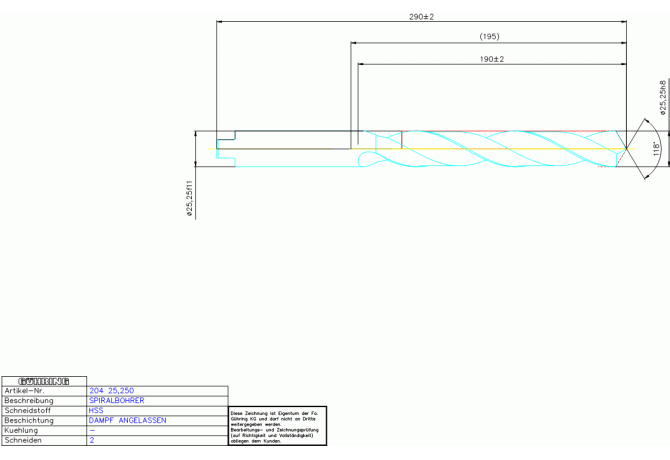

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 204 25.250

204 25.250

Артикул: 9002040252500

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

25.25 mm

DCONMSLD Shank diameter lower limit

-0.15 mm

DCONMSUD Shank diameter upper limit

-0.02 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL02522005

FamilyProducts

HSS SPIRALBOH, LANG 25,250 DIN 340RN M.L

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

140 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002040252500

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

190 mm

LF Functional length

290 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0252

LOC-03 DCONMS Diameter

25.25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02522005

LPR Protruding length

195 mm

LS Shank length

100 mm

LU Usable length

159 mm

Name Identifying order number

204 25.250

NOF Flute count

OAL Overall length

290 mm

PL Point length

7.6 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN340

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.821 kg
