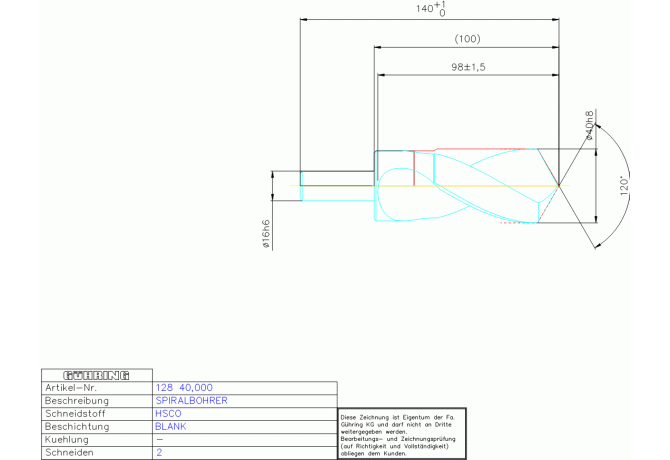

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 128 40.000

128 40.000

Артикул: 9001280400000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

40 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01600105

FamilyProducts

HSCO SPIRALBOHRER 40,000 WN RN ZYLABGES,

FHA Flute helix angle

31 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

212 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9001280400000

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

98 mm

LF Functional length

128.4 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LPR Protruding length

100 mm

LS Shank length

40 mm

LU Usable length

78.4 mm

Name Identifying order number

128 40.000

NOF Flute count

OAL Overall length

140 mm

PL Point length

11.6 mm

SIG Point angle 1st step

120 Degree

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.474 kg
