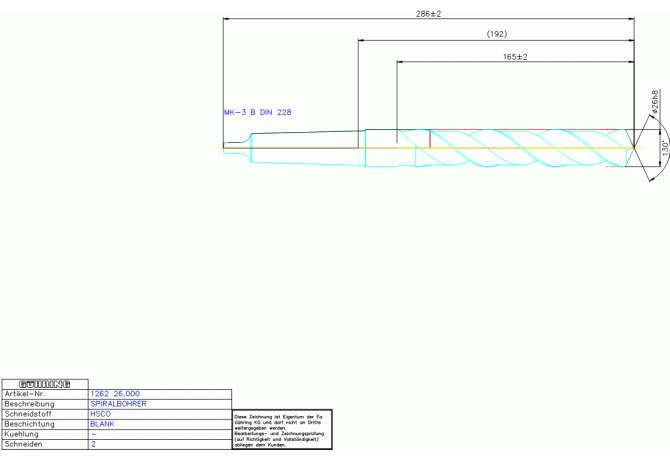

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1262 26.000

1262 26.000

Артикул: 9012620260000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

26 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00302085

FamilyProducts

HSCO SPIRALBOHRER 26,000 DIN 345RN VA MK

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

95 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9012620260000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

165 mm

LF Functional length

185.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0030

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00302085

LPR Protruding length

192 mm

LS Shank length

99 mm

LU Usable length

142 mm

Name Identifying order number

1262 26.000

NOF Flute count

OAL Overall length

286 mm

PL Point length

6.1 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

DIN345

Working process

BVB - Drilling

WT Weight of item

0.685 kg
