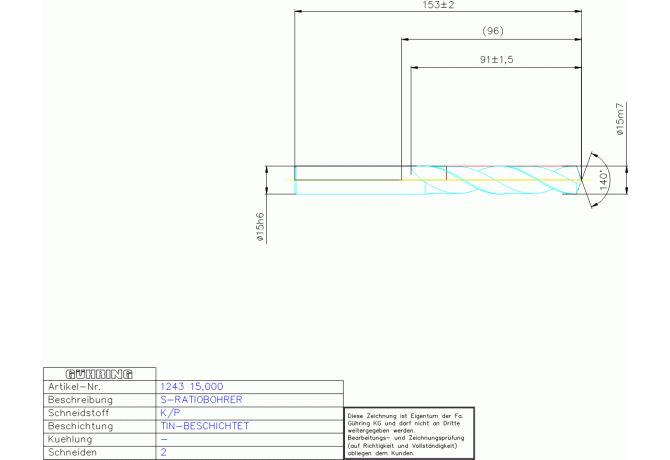

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1243 15.000

1243 15.000

Артикул: 9012430150000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TIN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

15 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01500105

FamilyProducts

VHM S-RATIOBOH, RT100 U 15,000 WN RN 5XD

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

80 mm

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9012430150000

Interface codes

J6 / J61

ISO

ZYL01G1500h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

91 mm

LF Functional length

150.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0150

LOC-03 DCONMS Diameter

15 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01500105

LPR Protruding length

96 mm

LS Shank length

62 mm

LU Usable length

72 mm

Name Identifying order number

1243 15.000

NOF Flute count

OAL Overall length

153 mm

PL Point length

2.9 mm

SIG Point angle 1st step

140 Degree

STDNO Standard

WN 54

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.299 kg
