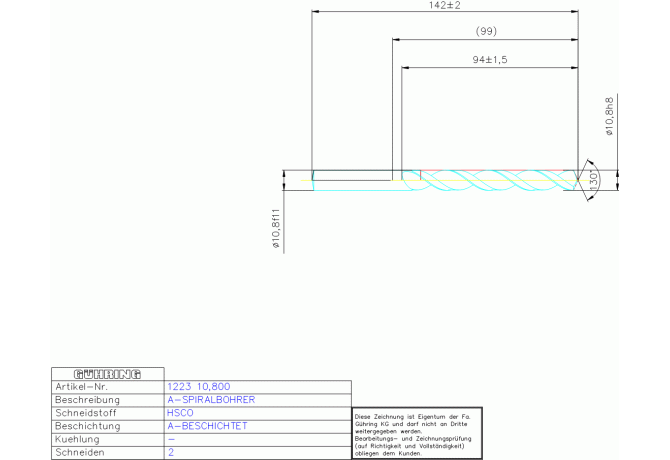

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1223 10.800

1223 10.800

Артикул: 9012230108000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TIALN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

10.8 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01080105

FamilyProducts

HSCO A-SPIRALBOHRER 10,800 DIN 338RN GT1

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

45 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9012230108000

Interface codes

J6 / J61

ISO

ZYL01080105f$11

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

94 mm

LF Functional length

139.4 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0108

LOC-03 DCONMS Diameter

10.8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03 ISO

ZYL01080105f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01080105

LPR Protruding length

99 mm

LS Shank length

48 mm

LU Usable length

84 mm

Name Identifying order number

1223 10.800

NOF Flute count

OAL Overall length

142 mm

PL Point length

2.6 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

DIN338

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.071 kg
