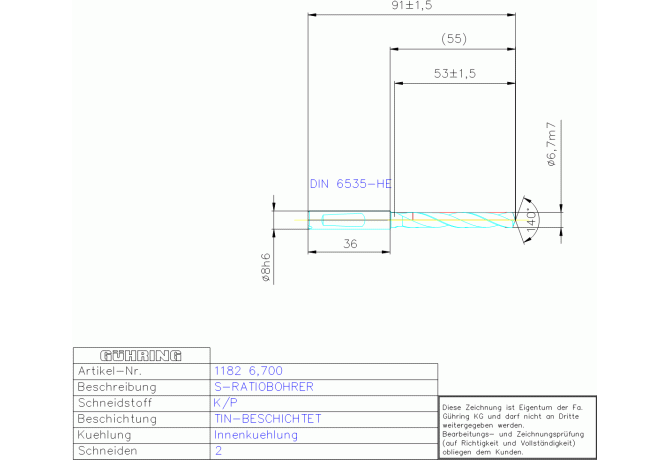

Главная Каталог продукции Toolunited 12 302-01 - Twist Drill 1182 6.700

1182 6.700

Артикул: 9011820067000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating

TIN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

6.7 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00805315

FamilyProducts

VHM S-RATIOBOH, KI RT100F DIN 6537L-B RN

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

43.53 mm

GRD2ND Standard designation of the grade 2nd application

K/P

GRDMFG Grade manufacturers designation

K/P

GRDPRIO Standard designation of the grade main application

HC-K/P

GRDSYC Grind style code

GG-FK

HAND Cutting direction

R - Right

ID Technical product number

9011820067000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

53 mm

LF Functional length

89.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00805315

LPR Protruding length

55 mm

LS Shank length

36 mm

LU Usable length

45 mm

Name Identifying order number

1182 6.700

NOF Flute count

OAL Overall length

91 mm

PL Point length

1.3 mm

SIG Point angle 1st step

140 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN6537L

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.001 kg
